Product Details
Place of Origin: China
Certification: ISO 9001
Payment & Shipping Terms
Minimum Order Quantity: 20
Price: Negotiable
Payment Terms: L/C, T/T, Paypal, Western Union
Supply Ability: 1000000/Month

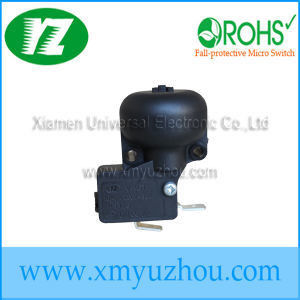

Model NO.: |
V-16TA |
Pressing Type: |
Push-Button |
Number Of Switch: |
Single Control Switch |
Protection: |
Dust-Proof |
Size: |
Small-Sized |
Environment: |
﹤250℃ |
Breaking Capacity: |
Micro-Current |
Breaking Form: |
Single Type |
Brand: |
Yuzhou |
The Theory: |
Safety Cut Off Micro Switch |
Rated Current: |
16A |
Rated Voltage: |
125VAC/250VAC |
Operating Force: |
1.5 N-3 N |
MOQ: |
1000PCS |
Carton Size: |
370mm*315mm*360mm |
Delivery Mode: |
FedEx/DHL/UPS/TNT |
Trademark: |
YZ |
Specification: |
CB, CE, TUV, CQC Approved, . RoHs Compliant |
Origin: |
Xiamen, China |
HS Code: |
85365000 |
Transport Package: |
Cartons |
Model NO.: |
V-16TA |
Pressing Type: |
Push-Button |
Number Of Switch: |
Single Control Switch |
Protection: |
Dust-Proof |
Size: |
Small-Sized |
Environment: |
﹤250℃ |
Breaking Capacity: |
Micro-Current |
Breaking Form: |
Single Type |
Brand: |
Yuzhou |
The Theory: |
Safety Cut Off Micro Switch |
Rated Current: |
16A |
Rated Voltage: |
125VAC/250VAC |
Operating Force: |
1.5 N-3 N |
MOQ: |
1000PCS |
Carton Size: |
370mm*315mm*360mm |
Delivery Mode: |
FedEx/DHL/UPS/TNT |
Trademark: |
YZ |
Specification: |
CB, CE, TUV, CQC Approved, . RoHs Compliant |
Origin: |
Xiamen, China |
HS Code: |
85365000 |
Transport Package: |
Cartons |
| Item | Value | |
| Perating Speed | 0.1mm~1m/s (Related with actuator forms) | |
| Operating Frequency | Mechanical 60 cycles/min; Electrical 30 cycles/min | |
| Insulation Resistance | 100 MΩ (500VDC) | |
| Contact resistance | <=30mΩ(Initial value) | |
| Test Voltage | Between terminals of the same polarirty | AC1000V,50/60Hz,1min |
| Between current-carrying metal and ground(case), and between each terminal and non-carrying metal parts | AC2000V,50/60Hz,1min | |
| Vibration resistance | 10-55Hz,1.5mm Double amplitude | |
| Shork Resistance | Destruction : OF>0.5N:1000m/s ²(approx.100G)max OF<=0.5N:500m/s ²(approx.50G)max Malfunction: OF>0.5N:300m/s ²(approx.30G)max OF<=0.5N:200m/s ²(approx.20G)max | |
| Life Expectancy | Mechnical>=5000000 cycles Electrical>=50000 cycles | |
| Degree of protection | IEC IP40 | |
| Degree of protection against electric shock | Class I | |
| PTI(Tracking Resistance) | 175 | |
| Ambient air temperature | 125°C 60%RH below(No ice and dew) | |
| Ambient air humidity | 85% Rhbelow(about +5~+35°C) | |
| Weight | Approx.5.95g(No lever) | |
