Product Details
Place of Origin: China
Certification: ISO 9001
Payment & Shipping Terms
Minimum Order Quantity: 20
Price: Negotiable
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 500000/Month

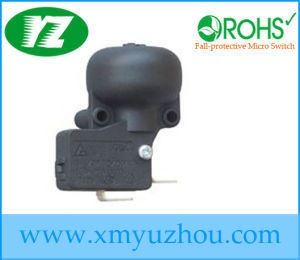

Model NO.: |
MS4-16TA |
The Theory: |
Fall Protective Switch |
Rating: |
16A |
Voltage: |
250V |
Usage: |
Heater/Patio Heater/Radiator |
Trademark: |
YZ |
Transport Package: |
Standard Export Package |
Specification: |
ISO/CB/TUV/CQC |
Origin: |
Xiamen, Fujian |
HS Code: |
85365000 |
Port: |
Xiamen, China |
Model NO.: |
MS4-16TA |
The Theory: |
Fall Protective Switch |
Rating: |
16A |
Voltage: |
250V |
Usage: |
Heater/Patio Heater/Radiator |
Trademark: |
YZ |
Transport Package: |
Standard Export Package |
Specification: |
ISO/CB/TUV/CQC |
Origin: |
Xiamen, Fujian |
HS Code: |
85365000 |
Port: |
Xiamen, China |
| Item | Value | ||
| Fall-Protect | Action Angle:30-50°;Reset Angle:>15°;The Error of Action Angle:±5° | ||
| Operating Frequency | Mechanical 60 cycles/min;Electrical 6 cycles/min | ||
| Insulation Resistance | 100 MΩ(500VDC) | ||
| Contact Resistance | Gold-plated | Below 15 mΩ | |
| No Gold-plated | 30-40 mΩ | ||
| Test Voltage | Between terminals of the same polarirty | AC1000V,50/60Hz,1min | |
| Between current-carrying metal And ground(case),and between Each terminal and non-carrying metal parts | AC2000V,50/60Hz,1min | ||
| Vibration resistance | 10-55Hz,1.5mm Double amplitude | ||
| Shork Resistance | Let switch fall freely from 200mm high into the cement flool or Armor plate horizontal. One time,one side(Up,dowm,left,right,front,back) | ||
| Life Expectancy | Mechnical>=5000000 cycles Electrical>=10000 cycles | ||
| Degree of protection | IEC IP40 | ||
| Degree of protection against electric shock | Class I | ||
| PTI(Tracking Resistance) | 175 | ||
| Ambient air temperature | 125Degree 60%RH below(No ice and dew) | ||
| Ambient air humidity | 85% Rhbelow(about +5~+35Degree) | ||
| Weight | Approx.39.7g | ||
