Product Details
Place of Origin: China
Certification: ISO 9001
Payment & Shipping Terms
Minimum Order Quantity: 20
Price: Negotiable
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 1000000/Month
Model NO.: |
V-16-1A6C |
Operating Force: |
0.5 N-4 N |
Rated Current: |
16A |
Rated Voltage: |
125VAC/250VAC |
Trademark: |
YZ |
Transport Package: |
Cartons |
Specification: |
UL, VDE, CE, CQC Approved, . RoHs Compliant |
Origin: |
Xiamen, China |
HS Code: |
85365000 |
Port: |
Xiamen, China |
Model NO.: |
V-16-1A6C |
Operating Force: |
0.5 N-4 N |
Rated Current: |
16A |
Rated Voltage: |
125VAC/250VAC |
Trademark: |
YZ |
Transport Package: |
Cartons |
Specification: |
UL, VDE, CE, CQC Approved, . RoHs Compliant |
Origin: |
Xiamen, China |
HS Code: |
85365000 |
Port: |
Xiamen, China |

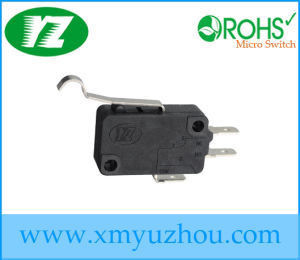

Breif information of Lever Switch:
Micro Switch controls of "On and Off" action. It is easy to manipulate the applications. We could provide you our high quality Microswitch products. Just take one simple action, you can set up all your electronic equipment. All our micro switches are activated by leaver or button. If you like some special forms, please contact us for further custom switches. We, Xiamen Universal Electronic Co., Ltd make our 16A Micro Switch to fit kinds of your max-needs.
Function and Characteristics:
*Long life, high reliability.
*Safe reliable basic switch.
*Variety of levers and connect terminals.
*A variety of models with low operating force to high force are sensitivity.
*Nice appearance, tight configuration, characteristic, quick action and high sensitivity.
*Mainly used in microwave oven, air condition, electric cooker, dishwasher, cleaner, humidifier, Water heater, electric drill, joystick, TV game, time recorder, solder gun, mixer, Food processor, juice maker, alarm, mixer, shredder machine, etc.
Production Workflow and Automatic Machine:
Why Choose Us?
Xiamen Universal Electronic Co., Ltd, is a professional company of switch control device and semiconductor component separator, shutter motors etc electrical appliance company. After years of efforts of all colleagues, the support of customers and suppliers, we now have the business department of the electronics switch and Integrated Department of Market Operation. The business department of the electronics switch is engaged in R & D and manufacturing of the medium and small electronic switches; The Integrated Department of Market Operation is responsible for the Integration Services of information gathering, selling, trading and so on. Our products cover a wide range, including micro switch, tact switch, push switch, metal dome switch, relay, low-voltage devices, rectifier bridge, ect. Those products are widely exported to more than 40 countries all over the world.
Xiamen Universal Electronic Co.,Ltd
Name: James Yan
Mobile: +86 13388659290
Tel: 86-579-86878277
Thank you for visiting our website. If you have more questions, please connect us freely. We will answer you as soon as possible.
| Item | Value | |
| Operating Speed | 0.1mm~1m/s(Related with actuator forms) | |
| Operating Frequency | Mechanical 60 cycles/min; Electrical 30 cycles/min | |
| Insulation Resistance | > =100 ohm(500VDC) | |
| Contact resistance | < =30ohm(Initial value) | |
| Test Voltage | Between terminals of the same polarirty | AC1000V, 50/60Hz, 1min |
| Between current-carrying metal And ground(case), and between Each terminal and non-carrying metal parts | AC3750V, 50/60Hz, 1min | |
| Vibration resistance | 10-55Hz, 1.5mm Double amplitude | |
| Shork Resistance | Destruction: OF> 0.5N: 1000m/s ² (approx. 100G)max OF< =0.5N: 500m/s ² (approx. 50G)max Malfunction: OF> 0.5N: 300m/s ² (approx. 30G)max OF< =0.5N: 200m/s ² (approx. 20G)max | |
| Life Expectancy | Mechnical> =5000000 cycles Electrical> =50000 cycles | |
| Degree of protection | IEC IP67 | |
| Degree of protection against electric shock | Class I | |
| PTI(Tracking Resistance) | 175 | |
| Ambient air temperature | 125degree60%RH below(No ice and dew) | |
| Ambient air humidity | 85% Rhbelow(about +5~+35degree) | |
| Weight | Approx. 5.95g(No lever) | |
| 1. Degree of Temperature | No Mark: T125 | 5. Terminal Types | A: 250 Quick-connect Terminal B: 187 Quick-connect terminal(Thick: 0.8) C: 187 Quick-connect terminal(Thick: 0.5) D: Solder/187 common terminal E: Screw terminal F: Solder terminal G: 250 Quick terminal No. 2 Y: Not standard terminal | |
| 2. Ratings | 16: 16(4)A250VAC/16A125VAC 1/2HP 125/250VAC 10: 10(3)A250VAC/10A125VAC 6: 6(2)A250VAC/6A125VAC 1: 1(1)A250VAC/1A125VAC | |||
| 6. (max) Operating Force | 051: 0.5N 025: 0.25N 050: 0.5N 100: 1N 150: 1.5N 200: 2N 300: 3N 400: 4N | |||
| 3. Connect Forms | 1A: SPDT 2A: SPST-NO 3A: SPST-NC | |||
| 7 Plunger specs | No mark: Standard Plunger A: Middle Plunger B: Long Plunger C: Abnormality Plunger ( see dirgram ) Notice: If adopt other not standard plunger, the indicate with the new spec(confirmed by our company) | |||
| 4. Acuator forms | 0: No lever A 1/1: Short lever A 2/2: Long lever A 3/3: Middle lever A 4/4: Short Roller A 5/5: Long Roller A 6/6: Arc lever A 0/0: Not standard lever Note: 1) A indicate the lever near to the Plunger, no A indicate the lever far Away from the plunger. 2) If lever is amounted besides, add letter" B" after the lever code. 3) 0 Indicate not standard lever | |||
| 8. Additional Specis Numbers Apply to: | 1)When used not standard parts such as not standard terminals; 2)When Customer has particular Operating value or other requirement 3) When the case is mot black, for example, grey shows as G. Additional specs number shows by Arabic numerals or Latin. color code after the numbers. If there is no Additional numbers, the place is vacant |
