Product Details
Place of Origin: China
Certification: ISO 9001
Payment & Shipping Terms
Minimum Order Quantity: 20
Price: Negotiable
Payment Terms: L/C, T/T, Western Union, Paypal
Supply Ability: 1000sets/Day
Model NO.: |
YZ-600KG-1P |
Application: |
Universal |
Speed: |
Constant Speed |
Number Of Stator: |
Single-Phase |
Function: |
Driving, Control |
Casing Protection: |
Closed Type |
Brand: |
Universal |
Theory: |
Industrial Shutter Door Motor |
Voltage Input: |
220V AC |
Type: |
AC Motor |
Phase: |
Single Phase |
OEM: |
Accept |
Motor Species: |
Asynchronous Motor |
Horsepowe: |
Strong Power Output |
Feature: |
Remote Control |
Raw Material: |
100%Copper Wire |
Trademark: |
YZ |
Transport Package: |
Standard Packing |
Specification: |
ISO9001 |
Origin: |
Fujian |
HS Code: |
85014000 |
Port: |
Xiamen, China |
Model NO.: |
YZ-600KG-1P |
Application: |
Universal |
Speed: |
Constant Speed |
Number Of Stator: |
Single-Phase |
Function: |
Driving, Control |
Casing Protection: |
Closed Type |
Brand: |
Universal |
Theory: |
Industrial Shutter Door Motor |
Voltage Input: |
220V AC |
Type: |
AC Motor |
Phase: |
Single Phase |
OEM: |
Accept |
Motor Species: |
Asynchronous Motor |
Horsepowe: |
Strong Power Output |
Feature: |
Remote Control |
Raw Material: |
100%Copper Wire |
Trademark: |
YZ |
Transport Package: |
Standard Packing |
Specification: |
ISO9001 |
Origin: |
Fujian |
HS Code: |
85014000 |
Port: |
Xiamen, China |

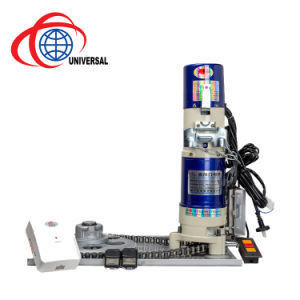

Industrial Shutter Door Motor for Rolling Doors
Shutter Door Motor Working environment and conditions:
1) Air temperature change as well as season.
2) Relative humidity:90%(25°C).
3) Voltage and frequency is in line with the product nameplate.
4)Short hour working system, continuous operation not exceeding 5 mins.
Shutter Door Motor Feature :
1) Shell : Aluminium alloy , solid and lingt but durable and easy to install.
2) Thermal efficiency protection device, protect the shutter door from damage and will not let the motor get burned.
3) When power failure, it convenient to manual operation.
4) Insurance device for chain broken,automatic slack adjuster for chain.
5) Equiped by a stand-by battery (14AH/12V) , and it works when the power off.
6) Remote control: long-distance operation.
Each Shutter Door Motor is tested before packing
Shutter Door Motor Application:
The motors products are widely used in shopping malls, hotels, warehouses, garages, post and telecommunications, banks, shops, factories and other buildings' rolling door opening and closing. It is an ideal accessory products of modern architecture.
| Model No. | Max upgrade weight(kg) | Max upgrade height(M) | Power (W) | Current Rating(A) | Output Torque(N.m) | Rotation (r/min) | CHAIN NO. |
| 220V 50Hz(230V 60Hz) | |||||||
| YZ300-1P | 300 | 6.5 | 250 | 3.3 | 168 | 6.2 | 10A |
| YZ500-1P | 500 | 6.5 | 250 | 3.9 | 343 | 6.2 | 10A |
| YZ600-1P | 600 | 6.5 | 370 | 3.9 | 412 | 6.2 | 10A |
| YZ800-1P | 800 | 7 | 370 | 4.5 | 607 | 3.4 | 10A |
| YZ1000-1P | 10000 | 7 | 400 | 4.5 | 1102 | 3.2 | 10A |
| 380V 50Hz(380V 60Hz) | |||||||
| YZ300-3P | 300 | 6.5 | 180 | 1.2 | 168 | 6.2 | 10A |
| YZ500-3P | 500 | 6.5 | 250 | 1.3 | 343 | 6.2 | 10A |
| YZ600-3P | 600 | 6.5 | 250 | 1.3 | 412 | 6.2 | 10A |
| YZ800-3P | 800 | 7 | 300 | 2 | 607 | 3.4 | 10A |
| YZ1000-3P | 1000 | 8 | 400 | 2.3 | 1102 | 6.5 | 12A |
| YZ1300-3P | 1300 | 8 | 600 | 3 | 1372 | 6.5 | 12A |
| YZ1500-3P | 1500 | 8 | 600 | 3.2 | 1610 | 5.7 | |
