Product Details
Place of Origin: China
Certification: ISO 9001
Payment & Shipping Terms
Minimum Order Quantity: 20
Price: Negotiable
Payment Terms: L/C, T/T, Western Union, Paypal
Supply Ability: 1000000/Month

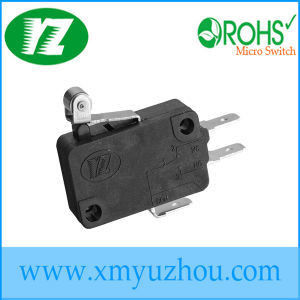

Model NO.: |
V-16-1A4C300 |
The Theory: |
Roller Lever Micro Switch |
Rating: |
16A 125VAC/16A 250VAC |
Connect Forms: |
Spdt |
Actuator Forms: |
Short Roller Lever |
Terminal Type: |
187 Quick-Connect Terminal(Thick: 0.5) |
Operating Force: |
3n/300gf |
Color: |
Black |
Package: |
2000PCS/CTN |
Carton Size: |
37.5*31*31cm |
Delivery: |
FedEx/TNT/UPS/DHL |
Trademark: |
YZ |
Transport Package: |
Cartons |
Specification: |
CB/TUV/CQC Approved, RoHs Compliant |
Origin: |
Xiamen, China |
HS Code: |
85365000 |
Port: |
Xiamen, China |
Model NO.: |
V-16-1A4C300 |
The Theory: |
Roller Lever Micro Switch |
Rating: |
16A 125VAC/16A 250VAC |
Connect Forms: |
Spdt |
Actuator Forms: |
Short Roller Lever |
Terminal Type: |
187 Quick-Connect Terminal(Thick: 0.5) |
Operating Force: |
3n/300gf |
Color: |
Black |
Package: |
2000PCS/CTN |
Carton Size: |
37.5*31*31cm |
Delivery: |
FedEx/TNT/UPS/DHL |
Trademark: |
YZ |
Transport Package: |
Cartons |
Specification: |
CB/TUV/CQC Approved, RoHs Compliant |
Origin: |
Xiamen, China |
HS Code: |
85365000 |
Port: |
Xiamen, China |
| Item | Value | |
| Operating Speed | 0.1mm~1m/s(Related with actuator forms) | |
| Operating Frequency | Mechanical 60 cycles/min; Electrical 30 cycles/min | |
| Insulation Resistance | > =100 ohm(500VDC) | |
| Contact resistance | < =30ohm(Initial value) | |
| Test Voltage | Between terminals of the same polarirty | AC1000V, 50/60Hz, 1min |
| Between current-carrying metal And ground(case), and between Each terminal and non-carrying metal parts | AC3750V, 50/60Hz, 1min | |
| Vibration resistance | 10-55Hz, 1.5mm Double amplitude | |
| Shork Resistance | Destruction: OF> 0.5N: 1000m/s ² (approx. 100G)max OF< =0.5N: 500m/s ² (approx. 50G)max Malfunction: OF> 0.5N: 300m/s ² (approx. 30G)max OF< =0.5N: 200m/s ² (approx. 20G)max | |
| Life Expectancy | Mechnical> =5000000 cycles Electrical> =50000 cycles | |
| Degree of protection | IEC IP40 | |
| Degree of protection against electric shock | Class I | |
| PTI(Tracking Resistance) | 175 | |
| Ambient air temperature | 125degree60%RH below(No ice and dew) | |
| Ambient air humidity | 85% Rhbelow(about +5~+35degree) | |
| Weight | Approx. 5.95g(No lever) | |
| 1. Degree of Temperature | No Mark: T125 | 5. Terminal Types | A: 250 Quick-connect Terminal B: 187 Quick-connect terminal(Thick: 0.8) C: 187 Quick-connect terminal(Thick: 0.5) D: Solder/187 common terminal E: Screw terminal F: Solder terminal G: 250 Quick terminal No. 2 Y: Not standard terminal | |
| 2. Ratings | 16: 16(4)A250VAC/16A125VAC 1/2HP 125/250VAC 10: 10(3)A250VAC/10A125VAC 6: 6(2)A250VAC/6A125VAC 1: 1(1)A250VAC/1A125VAC | |||
| 6. (max) Operating Force | 051: 0.5N 025: 0.25N 050: 0.5N 100: 1N 150: 1.5N 200: 2N 300: 3N 400: 4N | |||
| 3. Connect Forms | 1A: SPDT 2A: SPST-NO 3A: SPST-NC | |||
| 7 Plunger specs | No mark: Standard Plunger A: Middle Plunger B: Long Plunger C: Abnormality Plunger ( see dirgram ) Notice: If adopt other not standard plunger, the indicate with the new spec(confirmed by our company) | |||
| 4. Acuator forms | 0: No lever A 1/1: Short lever A 2/2: Long lever A 3/3: Middle lever A 4/4: Short Roller A 5/5: Long Roller A 6/6: Arc lever A 0/0: Not standard lever Note: 1) A indicate the lever near to the Plunger, no A indicate the lever far Away from the plunger. 2) If lever is amounted besides, add letter" B" after the lever code. 3) 0 Indicate not standard lever | |||
| 8. Additional Specis Numbers Apply to: | 1)When used not standard parts such as not standard terminals; 2)When Customer has particular Operating value or other requirement 3) When the case is mot black, for example, grey shows as G. Additional specs number shows by Arabic numerals or Latin. color code after the numbers. If there is no Additional numbers, the place is vacant |
