Product Details
Place of Origin: China
Certification: ISO 9001
Payment & Shipping Terms
Minimum Order Quantity: 20
Price: Negotiable
Payment Terms: L/C, T/T, Western Union, Paypal
Supply Ability: 1000000/Month

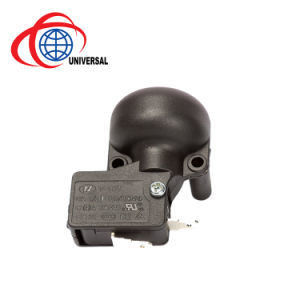

Model NO.: |
V-16TA |
Pressing Type: |
Push-Button |
Number Of Switch: |
Single Control Switch |
Protection: |
Dust-Proof |
Size: |
Small-Sized |
Environment: |
﹤250℃ |
Breaking Capacity: |
Micro-Current |
Breaking Form: |
Single Type |
Application: |
Patio Gas Heaters, Outdoor Heater |
Brand: |
Universal |
Theory: |
Propane Patio Heater Anti Tilt Switch |
Rated Current: |
16A |
Package: |
300PCS/CTN |
Carton Size: |
370mm*315mm*360mm |
Trademark: |
YZ |
Transport Package: |
Standard Export Cartons |
Specification: |
CB, TUV, CE, CQC Approved, RoHs Compliant |
Origin: |
Xiamen, China |
HS Code: |
85365000 |
Port: |
Xiamen, China |
Model NO.: |
V-16TA |
Pressing Type: |
Push-Button |
Number Of Switch: |
Single Control Switch |
Protection: |
Dust-Proof |
Size: |
Small-Sized |
Environment: |
﹤250℃ |
Breaking Capacity: |
Micro-Current |
Breaking Form: |
Single Type |
Application: |
Patio Gas Heaters, Outdoor Heater |
Brand: |
Universal |
Theory: |
Propane Patio Heater Anti Tilt Switch |
Rated Current: |
16A |
Package: |
300PCS/CTN |
Carton Size: |
370mm*315mm*360mm |
Trademark: |
YZ |
Transport Package: |
Standard Export Cartons |
Specification: |
CB, TUV, CE, CQC Approved, RoHs Compliant |
Origin: |
Xiamen, China |
HS Code: |
85365000 |
Port: |
Xiamen, China |
| Item | Value | ||
| Fall-Protect | Action Angle:30-50°;Reset Angle:>15°;The Error of Action Angle:±5° | ||
| Operating Frequency | Mechanical 60 cycles/min;Electrical 6 cycles/min | ||
| Insulation Resistance | 100 MΩ(500VDC) | ||
| Contact Resistance | Gold-plated | Below 15 mΩ | |
| No Gold-plated | 30-40 mΩ | ||
| Test Voltage | Between terminals of the same polarirty | AC1000V,50/60Hz,1min | |
| Between current-carrying metal And ground(case),and between Each terminal and non-carrying metal parts | AC2000V,50/60Hz,1min | ||
| Vibration resistance | 10-55Hz,1.5mm Double amplitude | ||
| Shork Resistance | Let switch fall freely from 200mm high into the cement flool or Armor plate horizontal. One time,one side(Up,dowm,left,right,front,back) | ||
| Life Expectancy | Mechnical>=5000000 cycles Electrical>=10000 cycles | ||
| Degree of protection | IEC IP40 | ||
| Degree of protection against electric shock | Class I | ||
| PTI(Tracking Resistance) | 175 | ||
| Ambient air temperature | 125 ºC 60%RH below(No ice and dew) | ||
| Ambient air humidity | 85% Rhbelow(about +5~+35 ºC) | ||
| Weight | Approx.39.7g | ||
