Product Details
Place of Origin: China
Certification: ISO 9001
Payment & Shipping Terms
Minimum Order Quantity: 20
Price: Negotiable
Payment Terms: L/C, T/T, Western Union, Paypal
Supply Ability: 1000000/Month
Model NO.: |
HFE20 |
Theory: |
Electromagnetic Relay |
Usage: |
Household Appliances Relay |
Phase: |
1 |
Electricity Type: |
AC/DC |
Number Of Pole: |
1 |
Load: |
High Power Relay |
Protective Characteristics: |
Sealed Relay |
Action Principle: |
Electromagnetic Type |
Size: |
Subminiature |
Type: |
Latching Relay |
Trademark: |
HONGFA |
Transport Package: |
Standard Export Carton Box |
Specification: |
(29.0 X 12.7 X 15.7)mm |
Origin: |
Xiamen, China |
Port: |
Xiamen, China |
Model NO.: |
HFE20 |
Theory: |
Electromagnetic Relay |
Usage: |
Household Appliances Relay |
Phase: |
1 |
Electricity Type: |
AC/DC |
Number Of Pole: |
1 |
Load: |
High Power Relay |
Protective Characteristics: |
Sealed Relay |
Action Principle: |
Electromagnetic Type |
Size: |
Subminiature |
Type: |
Latching Relay |
Trademark: |
HONGFA |
Transport Package: |
Standard Export Carton Box |
Specification: |
(29.0 X 12.7 X 15.7)mm |
Origin: |
Xiamen, China |
Port: |
Xiamen, China |

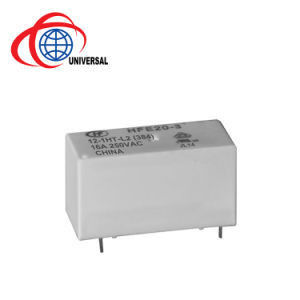

| Relay Type:HFE20 |
| · 16A switching capability · Latching relay · Have passed TV-8 (UL) certification · Inrush current Capacitor 500A/2ms and 320A/2ms (Contact material: W+AgSnO2 and AgSnO2) · Environmental friendly product (RoHS compliant) · Outline Dimensions: (29.0 x 12.7 x 15.7)mm |
| Contact Data | |
| Contact Arrangement: | 1A, 1B, 1C |
| Contact Resistance: | AgSnO2 , W+AgSnO2 |
| Contact Rating: | 16A 250VAC |
| Max. switching Voltage: | 277VAC |
| Max. Switching Power: | 4000VA |
| Mechanical Endurance: | 1×106OPS |
| Electrical Endurance: | See "Contact rating" |
| Characteristics | |
| Insulation Resistance: | 1000MΩ |
| Dielectric Strength: | 4400VAC |
| Operate Time (max): | 10ms |
| Release Time (max): | 10ms |
| Ambient Temperature: | -40ºC ~ 85ºC |
| Terminal Type: | THT |
| Coil Data | |
| Nominal Voltage: | (3~24)VDC |
| Coil Power: | 0.4W, 0.6W |
