Product Details
Place of Origin: China
Certification: ISO 9001
Payment & Shipping Terms
Minimum Order Quantity: 20
Price: Negotiable
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 1000000/Month
Model NO.: |
HFE7 |
Theory: |
Electromagnetic Relay |
Usage: |
Household Appliances Relay |
Phase: |
1 |
Electricity Type: |
AC/DC |
Number Of Pole: |
1 |
Load: |
High Power Relay |
Protective Characteristics: |
Sealed Relay |
Action Principle: |
Electromagnetic Type |
Size: |
Subminiature |
Type: |
Latching Relay |
Trademark: |
HONGFA |
Transport Package: |
Standard Export Carton Box |
Specification: |
(20.0 X 15.0 X 10.2) Mm |
Origin: |
Xiamen, China |
Port: |
Xiamen, China |
Model NO.: |
HFE7 |
Theory: |
Electromagnetic Relay |
Usage: |
Household Appliances Relay |
Phase: |
1 |
Electricity Type: |
AC/DC |
Number Of Pole: |
1 |
Load: |
High Power Relay |
Protective Characteristics: |
Sealed Relay |
Action Principle: |
Electromagnetic Type |
Size: |
Subminiature |
Type: |
Latching Relay |
Trademark: |
HONGFA |
Transport Package: |
Standard Export Carton Box |
Specification: |
(20.0 X 15.0 X 10.2) Mm |
Origin: |
Xiamen, China |
Port: |
Xiamen, China |

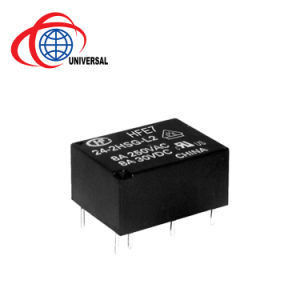

| Relay Type:HFE7 |
| · High switching capacity 1A, 1B: 10A 250VAC/30VDC; 2A, 2B, 1A + 1B: 8A 250VAC/30VDC · High sensitive · 4kV dielectric strength (between coil & contacts) · Single side stable and latching types available · 1 Form A, 1 Form B, 2 Form A, 2 Form B and 1A + 1B contact arrangement · Environmental friendly product (RoHS compliant) · Outline Dimensions: (20.0 x 15.0 x 10.2) mm |
| Contact Data | |
| Contact Arrangement: | 1A,1B,2A,2B,1A+1B |
| Contact Resistance: | AgSnO2, AgNi |
| Contact Rating: | 1A,1B:10A 250VAC /30VDC 2A,2B,1AD:8A 250VAC /30VDC |
| Max. switching Voltage: | 277VAC |
| Max. Switching Power: | 1H,1D:2500VA 2H,2D,1HD:2000VA |
| Mechanical Endurance: | 1×107OPS |
| Electrical Endurance: | 1 x 105OPS (2A: 3 x 104OPS) |
| Characteristics | |
| Insulation Resistance: | 1000MΩ |
| Dielectric Strength: | 4000VAC |
| Operate Time (max): | 10ms |
| Release Time (max): | 10ms |
| Ambient Temperature: | -40ºC ~ 70ºC |
| Terminal Type: | THT |
| Coil Data | |
| Nominal Voltage: | (3~24)VDC |
| Coil Power: | 0.2W, 0.28W,0.42W,0.3W |
