Product Details
Place of Origin: China
Certification: ISO 9001
Payment & Shipping Terms
Minimum Order Quantity: 20
Price: Negotiable
Payment Terms: L/C, T/T, D/P, Western Union, Paypal
Supply Ability: 2000 Sets/Day
Model NO.: |
YZ-600KG-1P |
Application: |
Industrial |
Speed: |
Low Speed |
Number Of Stator: |
Single-Phase |
Function: |
Driving, Control |
Casing Protection: |
Protection Type |
Number Of Poles: |
4 |
Starting Mode: |
Variable Frequency Starting |
Brand: |
Universal |
The Theory: |
Roller Shutter Motor |
Upgrade Weight: |
600kg |
Upgrade Height: |
6m |
Voltage: |
220V/380V |
Rated Power: |
370W |
Weight Of Motor: |
12kg |
Cartons Two Cartons: |
Motor And Accessory |
Carton Size Of Motor: |
555mm*255mm*194mm |
Carton Size Of Accessory: |
510mm*297mm*110mm |
Warranty: |
2 Years |
Trademark: |
Universal |
Transport Package: |
Standard Export Packing |
Specification: |
SGS, ISO |
Origin: |
Fujian, Xiamen |
HS Code: |
850140000 |
Port: |
Xiamen, China |
Model NO.: |
YZ-600KG-1P |
Application: |
Industrial |
Speed: |
Low Speed |
Number Of Stator: |
Single-Phase |
Function: |
Driving, Control |
Casing Protection: |
Protection Type |
Number Of Poles: |
4 |
Starting Mode: |
Variable Frequency Starting |
Brand: |
Universal |
The Theory: |
Roller Shutter Motor |
Upgrade Weight: |
600kg |
Upgrade Height: |
6m |
Voltage: |
220V/380V |
Rated Power: |
370W |
Weight Of Motor: |
12kg |
Cartons Two Cartons: |
Motor And Accessory |
Carton Size Of Motor: |
555mm*255mm*194mm |
Carton Size Of Accessory: |
510mm*297mm*110mm |
Warranty: |
2 Years |
Trademark: |
Universal |
Transport Package: |
Standard Export Packing |
Specification: |
SGS, ISO |
Origin: |
Fujian, Xiamen |
HS Code: |
850140000 |
Port: |
Xiamen, China |

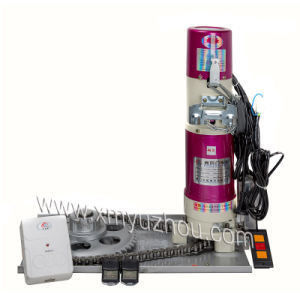

Product Name: Automatic Door Motor
1.The Main Structure of Electric Shutter Motor :
2. AC Roller Shutter Motor Specification
3.FAQ:
Q1: What's your Product Range?
1) AC Motor 1 Phase (220V 50Hz)
2) AC Motor 3 Phase (380V 50Hz)
3) AC&DC Motor (24VDC 50Hz)
Q2: What's the material of Motor Winding?
-The main material is 100% Copper Wire, and the Aluminum Wire is for optional.
Q3: Is the contactor or relay in the control panel of motor?
-Relay, usually there are 4 relays in the control panel of the motor.
Q4: How many days will samples be finished? And how about the mass production?
-Generally, within one week for samples making.
-The lead time of mass production will depend on quantity. normally,We finish within 20 days.
Q5: What information should I let you know if I want to get a quotation?
-The Width ,Height and Weight of the Shutter/Door
-The Voltage(220VAC,380VAC or 24VDC)
-The Quantity
4.Packing Information
Packing Details of Garage Door Opener:
There are 2 ctns per set. One for motor. and another for accessory. (For remote control set, it is packed in another ctn. Usually for remote control, there are pcs per ctn)
5.Contact Information:
Name: Amy Wu
Mobile: +8615606008788
Tel: 86-592-5782488
Website: http://xm-universe.en.made-in-china.com
| Model No. | Max Upgrade Weight (KG) | Max Upgrade Height (M) | Power (W) | Current Rating (A) | Output Torque (N.m) | Rotation(r/min) | Chain NO. | ||
| 220V 50Hz (230V 60Hz) | |||||||||
| YZ-300-1P | 300 | 4.5 | 180 | 2.2 | 168 | 3.8 | 08B | ||
| YZ-500-1P | 500 | 6 | 370 | 3.5 | 345 | 5.9 | 10A | ||
| YZ-600-1P | 600 | 6 | 370 | 3.5 | 412 | 5.2 | 10A | ||
| YZ-800-1P | 800 | 6 | 400 | 4.2 | 650 | 4.8 | 10A | ||
| YZ-1000-1P | 1000 | 10 | 800 | 5.8 | 810 | 4.2 | 10A | ||
| 380V 50Hz (380V 60Hz) | |||||||||
| YZ-800-3P | 800 | 6 | 370 | 1.3 | 650 | 4.8 | 10A | ||
| YZ-1000-3P | 1000 | 10 | 400 | 1.5 | 810 | 4.2 | 12A | ||
| YZ-1300-3P | 1300 | 10 | 800 | 2.0 | 1050 | 4.2 | 12A | ||
| YZ-1500-3P | 1500 | 10 | 800 | 2.5 | 1220 | 3.8 | 12A | ||
