Product Details
Place of Origin: China
Certification: ISO 9001
Payment & Shipping Terms
Minimum Order Quantity: 20
Price: Negotiable
Payment Terms: L/C, T/T, Western Union, Paypal
Supply Ability: 1000000/Week
Model NO.: |
YZ-M |
Theory: |
Electromagnetic Relay |
Usage: |
Household Appliances Relay, Lathe Relay |
Phase: |
1 |
Electricity Type: |
Ac |
Number Of Pole: |
2 |
Load: |
Weak Power Relay |
Protective Characteristics: |
Sealed Relay |
Action Principle: |
Electromagnetic Type |
Size: |
Subminiature |
Type: |
Electric Parameter Relay |
Trademark: |
HONGFA |
Transport Package: |
Cartons |
Specification: |
Mini |
Origin: |
China |
HS Code: |
8536419000 |
Port: |
Xiamen, China |
Model NO.: |
YZ-M |
Theory: |
Electromagnetic Relay |
Usage: |
Household Appliances Relay, Lathe Relay |
Phase: |
1 |
Electricity Type: |
Ac |
Number Of Pole: |
2 |
Load: |
Weak Power Relay |
Protective Characteristics: |
Sealed Relay |
Action Principle: |
Electromagnetic Type |
Size: |
Subminiature |
Type: |
Electric Parameter Relay |
Trademark: |
HONGFA |
Transport Package: |
Cartons |
Specification: |
Mini |
Origin: |
China |
HS Code: |
8536419000 |
Port: |
Xiamen, China |
HFE60 Magnetic Latching Relay for smart switch

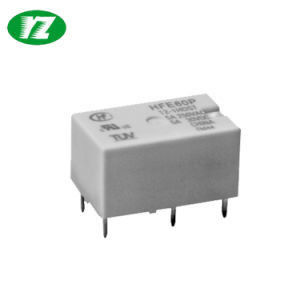

Picture of double coil latching relay
SUBMINIATURE INTERMEDIATE POWER RELAY
Features of double coil latching relay
| Relay Type:HFE60 |
| · Low height 10.5mm · Low coil power · High switching capacity 1A: 8A 250VAC 2A, 1A+1B: 5A 250VAC · 1 Form A, 2 Form A, 1 Form A+1 Form B configuration · 3kV dielectric strength (between coil and contacts) · Environmental friendly product (RoHS compliant) |
| Contact Data double coil latching relay | |
| Contact Arrangement: | 1A,2A,1A+1B |
| Contact Resistance: | AgSnO2 |
| Contact Rating: | 8A 250VAC 5A 30VDC |
| Max. switching Voltage: | 380VAC / 240VDC |
| Max. Switching Power: | 2000VA / 150W |
| Mechanical Endurance: | 1×107OPS |
| Electrical Endurance: | 3×104OPS |
| Characteristics double coil latching relay | |
| Insulation Resistance: | 1000MΩ |
| Dielectric Strength: | 300VAC |
| Operate Time (max): | 10 |
| Release Time (max): | 5s |
| Ambient Temperature: | -40ºC~ 85ºC |
| Terminal Type: | THT |
| Coil Data double coil latching relay | |
| Nominal Voltage: | (3~24)VDC |
| Coil Power: | 0.15W, 0.3W |
| Ordering Information double coil latching relay |
To order HFE60 Hongfa double coil latching relay
