Product Details
Place of Origin: China
Certification: ISO 9001
Payment & Shipping Terms
Minimum Order Quantity: 20
Price: Negotiable
Payment Terms: L/C, T/T, Western Union, Paypal
Supply Ability: 1000000/Week
Model NO.: |
HFE19 |
Theory: |
Electromagnetic Relay |
Usage: |
Household Appliances Relay, Lathe Relay |
Phase: |
1 |
Electricity Type: |
Ac |
Number Of Pole: |
2 |
Load: |
Weak Power Relay |
Protective Characteristics: |
Sealed Relay |
Action Principle: |
Electromagnetic Type |
Size: |
Subminiature |
Type: |
Electric Parameter Relay |
Trademark: |
HONGFA |
Transport Package: |
Cartons |
Specification: |
Mini |
Origin: |
China |
HS Code: |
8536419000 |
Port: |
Xiamen, China |
Model NO.: |
HFE19 |
Theory: |
Electromagnetic Relay |
Usage: |
Household Appliances Relay, Lathe Relay |
Phase: |
1 |
Electricity Type: |
Ac |
Number Of Pole: |
2 |
Load: |
Weak Power Relay |
Protective Characteristics: |
Sealed Relay |
Action Principle: |
Electromagnetic Type |
Size: |
Subminiature |
Type: |
Electric Parameter Relay |
Trademark: |
HONGFA |
Transport Package: |
Cartons |
Specification: |
Mini |
Origin: |
China |
HS Code: |
8536419000 |
Port: |
Xiamen, China |
HFE19 Hongfa dual latching relay

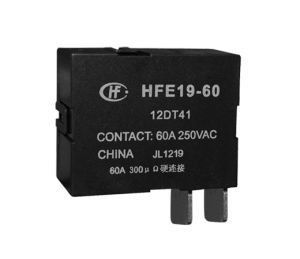

Picture of dual latching relay
HIGH POWER LATCHING RELAY
Features of dual latching relay
| MINIATURE HIGH POWER LATCHING RELAY |
| Relay Type:HFE19-60 |
| · 60A switching capability · Latching relay · The relay can stand 1500A peak current for 10ms · Carrying the 3500A r.m.s short circuit current without explosion for 10ms · 4kV dielectric strength (between coil and contact) · Environmental friendly product (RoHS compliant) · Outline Dimensions: (38.0 x 30.0 x 16.5) mm |
| Contact Data dual latching relay | |
| Contact Arrangement: | 1A,1B |
| Contact Resistance: | AgSnO2 |
| Contact Rating: | 60A 250VAC |
| Max. switching Voltage: | 250VAC |
| Max. Switching Power: | 22500VA |
| Mechanical Endurance: | 1×105OPS |
| Electrical Endurance: | 6000OPS |
| Characteristics dual latching relay | |
| Insulation Resistance: | 1000MΩ |
| Dielectric Strength: | 4000VAC |
| Operate Time (max): | 20ms |
| Release Time (max): | 20ms |
| Ambient Temperature: | -40ºC ~ 70ºC |
| Terminal Type: | QC |
| Coil Data dual latching relay | |
| Nominal Voltage: | (9~48)VDC |
| Coil Power: | 1.0W, 2.0W |
| Ordering Information dual latching relay |
