Product Details
Place of Origin: China
Certification: ISO 9001
Payment & Shipping Terms
Minimum Order Quantity: 20
Price: Negotiable
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 1000000/Month
Model NO.: |
V-16B6 |
Pressing Type: |
Push-Button |
Number Of Switch: |
Single Control Switch |
Protection: |
Dust-Proof |
Size: |
Small-Sized |
Environment: |
﹤250℃ |
Breaking Capacity: |
General Type |
Breaking Form: |
Single Type |
Brand: |
Yz |
Rated Current: |
16A |
Theory: |
16A Micro Switch |
Operating Force: |
300GF/3n |
Terminal Type: |
187 Quick-Connect Terminal |
Trademark: |
YZ |
Transport Package: |
Standard Export Package |
Specification: |
CE, CB, TUV, CQC |
Origin: |
Xiamen, Fujian |
HS Code: |
85365000 |
Port: |
Xiamen, China |
Model NO.: |
V-16B6 |
Pressing Type: |
Push-Button |
Number Of Switch: |
Single Control Switch |
Protection: |
Dust-Proof |
Size: |
Small-Sized |
Environment: |
﹤250℃ |
Breaking Capacity: |
General Type |
Breaking Form: |
Single Type |
Brand: |
Yz |
Rated Current: |
16A |
Theory: |
16A Micro Switch |
Operating Force: |
300GF/3n |
Terminal Type: |
187 Quick-Connect Terminal |
Trademark: |
YZ |
Transport Package: |
Standard Export Package |
Specification: |
CE, CB, TUV, CQC |
Origin: |
Xiamen, Fujian |
HS Code: |
85365000 |
Port: |
Xiamen, China |
Type: Shrapnel-type Structure

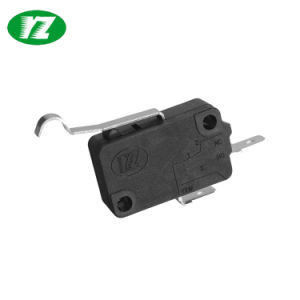

Specifications of micro switch / 16A micro switches / micro switch with lever:
*Actuator forms: no Lever| Item | Value | |
| Operating Speed | 0.1mm~1m/s(Related with actuator forms) | |
| Operating Frequency | Mechanical 60 cycles/min;Electrical 30 cycles/min | |
| Insulation Resistance | >=100 MΩ (500VDC) | |
| Contact resistance | <=30mΩ(Initial value) | |
| Test Voltage | Between terminals of the same polarirty | AC1000V,50/60Hz,1min |
| Between current-carrying metal,and ground(case),and between each terminal and non-carrying metal parts | AC3750V,50/60Hz,1min | |
| Vibration resistance | 10-55Hz,1.5mm Double amplitude | |
| Shork Resistance | Destruction: OF>0.5N:1000m/s ²(approx.100G)max OF<=0.5N:500m/s ²(approx.50G)max Malfunction: OF>0.5N:300m/s ²(approx.30G)max OF<=0.5N:200m/s ²(approx.20G)max | |
| Life Expectancy | Mechnical>=5000000 cycles Electrical>=100000 cycles | |
| Degree of protection | IEC IP67 | |
| Degree of protection against electric shock | Class I | |
| PTI(Tracking Resistance) | 175 | |
| Ambient air temperature | 125 Degree 60%RH below(No ice and dew) | |
| Ambient air humidity | 85% Rhbelow(about +5~+35 Degree) | |
| Weight | Approx.5.95g(No lever) | |
| 1.Degree of Temperature | No Mark:T125 | 5.Terminal Types | A:250 Quick-connect Terminal B:187 Quick-connect terminal(Thick:0.8) C: 187 Quick-connect terminal(Thick:0.5) D:Solder/187 common terminal E:Screw terminal F:Solder terminal G:250 Quick terminal No.2 Y:Not standard terminal | |
| 2.Ratings | 16:16(4)A250VAC/16A125VAC 1/2HP 125/250VAC 10:10(3)A250VAC/10A125VAC 6:6(2)A250VAC/6A125VAC 1:1(1)A250VAC/1A125VAC | |||
| 6.(max) Operating Force | 100:1N 150:1N 200:2N 250:3N 300:3N 400:4N | |||
| 3.Connect Forms | Z:SPDT K:SPST-NC B:SPST-NO | |||
| 7.Plunger specs | No mark:Standard Plunger A: Middle Plunger B: Long Plunger C: Abnormality Plunger Notice:If adopt other not standard plunger,the indicate with the new spec(confirmed by our company) | |||
| 4.Acuator forms | 0: No lever A 1/1:Short lever A 2/2:Long lever A 3/3:Middle lever A 4/4:Short Roller lever A 5/5:Long Roller lever A 6/6: Arc lever A / :Not standard lever Note: 1) A indicate the lever near to the Plunger,no A indicate the lever far Away from the plunger. 2) If lever is amounted besides,add letter"B" after the lever code. 3) Indicate not standard lever | |||
| 8.Additional Specis Numbers Apply to: | 1)When used not standard parts such as not standard terminals; 2)When Customer has particular Operating value or other requirement; 3) When the case is mot black, for example, grey shows as G; Additional specs number shows by Arabic numerals or Latin. color code after the numbers. If there is no Additional numbers, the place is vacant |
